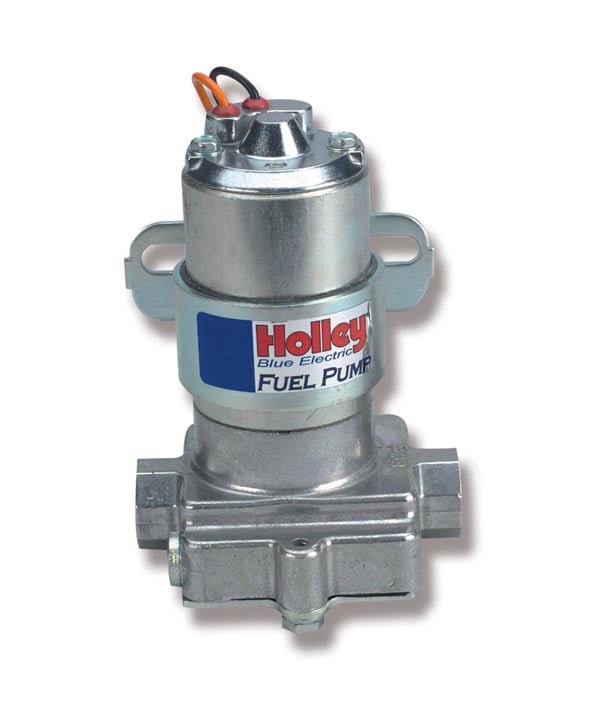

Holley 110 GPH "Blue" Electric Pump Without Regulator 12-812-1
Holley 110 GPH "Blue" Electric Pump Without Regulator 12-812-1
Contact for pricing information
Couldn't load pickup availability
Holley 110 GPH "Blue" Electric Pump Without Regulator 12-812-1
Description
The world famous Red, Blue and Black fuel pumps are the most recognized performance pumps of all times. They have been powering racing legends and street enthusiasts alike since the early 70's. Their time proven rotor/vane design is known to get the job done in an affordable package.
Features
- Tumble polished billet look
- Lower housing casting designed for enhanced fuel flow and quiet operation
- Motor draws only 3 amps current
- 7 1/2 amp fuse recommended
- Improved design for street/strip applications
- Not designed for use on aircraft of any type.
- Distinctive “Blue” logo
- Flows 110 GPH (free flow)
- Flows 88 GPH at 9 psi
- maximum pressure is 14 psi
- Provides constant fuel flow with no pulsation
- Has externally accessible pressure relief valve (max 14 psi)
- Rotor/vane pump design is more tolerant of contaminated fuels
- Weighs only 3 lbs
- Includes mounting bracket
- Repair kits are readily available
- Can be serviced from the pump end
- Not compatible with alcohol or methanol fuels
- Use of safety shut-off switch, P/N 12-810, strongly recommended
- Not designed or recommended for use with fuel injection systems
- Fuel pressure regulator not included
Specification
| Bracket Color | Silver |
|---|---|
| Brand | Holley |
| Category | Air and Fuel Delivery |
| Emission Code | 5 |
| Free Flow GPH | 110 |
| Free Flow LPH | 416 |
| Fuel Delivery Type | Carburetor |
| Fuel Sending Unit Included | No |
| Fuel System | Carbureted |
| Fuel Type | Gasoline |
| Gasket Or Seal Included | No |
| Grade Type | Performance |
| Inlet Fitting Thread Size | 3/8 IN |
| Inlet Size | 3/8 inch NPT |
| Inlet Type | NPT |
| Internal Or External | External |
| Material | Aluminum |
| Maximum Amperage Draw | 3 68 |
| Maximum Flow Rating | 110 GPH |
| Maximum Pressure | 14 PS |
| Motor Finish | Silver |
| Negative Ground | Yes |
| Outlet Fitting Thread Size | 3/8 IN |
| Outlet Quantity | 1 |
| Outlet Size | 3/8 inch NPT |
| Outlet Type | NPT |
| Part Type | Electric Fuel Pump |
| Product Type | Fuel Pump |
| Pump Body Color | Silver |
| Regulator Included | No |
| Sub Category | Fuel Pumps and Related Components |
| Universal Or Specific Fit | Universal |
| Voltage | 12 2H |
| Warranty | Manufacturer's Limited 90 Day Warranty |
| Wire Quantity | 2 |
| UPC | 090127619087 |
| Part Number | 12-812-1 |
