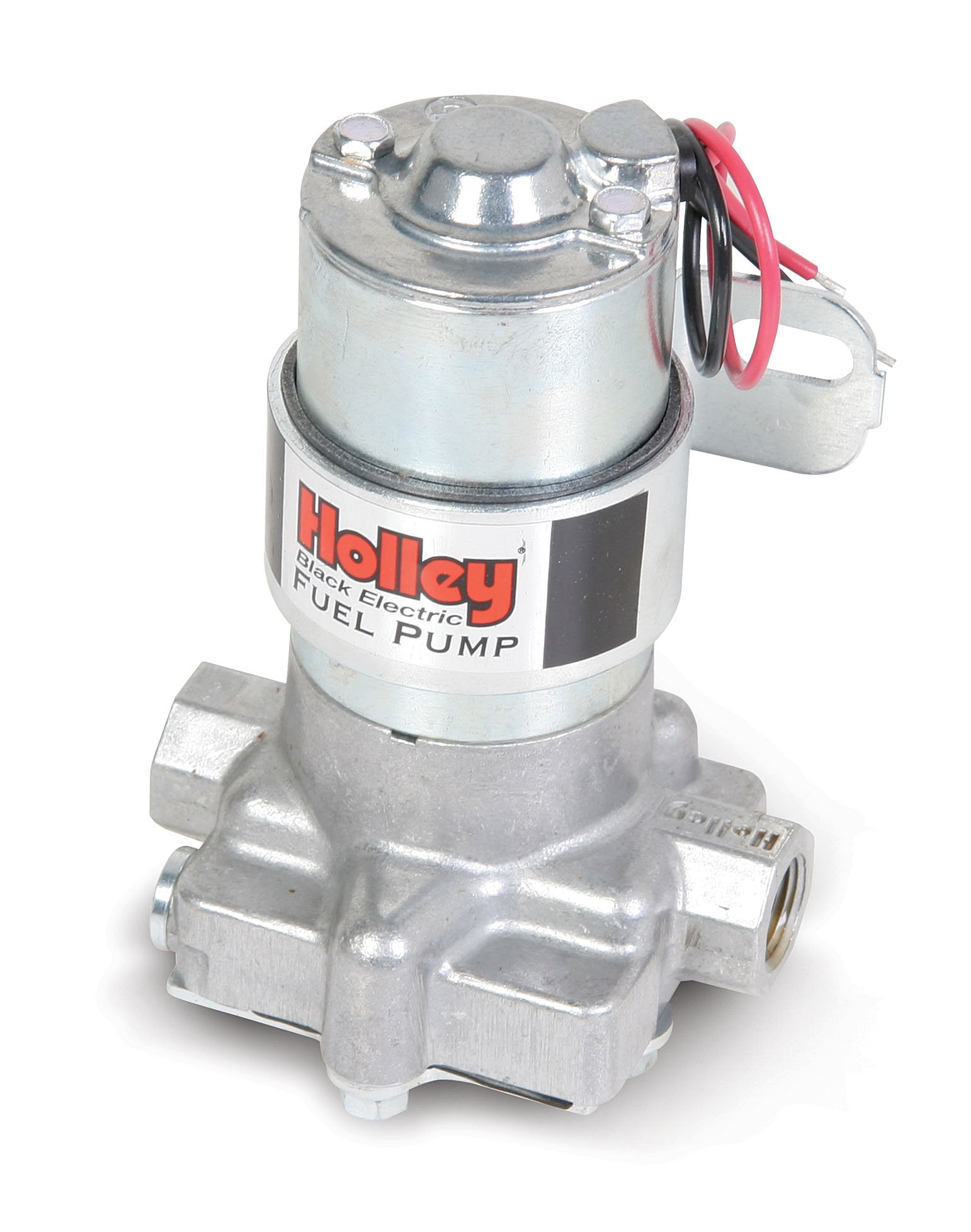

Holley 140 GPH Black® Electric Fuel Pump 12-815-1
Holley 140 GPH Black® Electric Fuel Pump 12-815-1
Contact for pricing information
Couldn't load pickup availability
Holley 140 GPH Black® Electric Fuel Pump 12-815-1
Description
The world famous Red®, Blue® and Black® fuel pumps are the most recognized performance pumps of all times. They have been powering racing legends and street enthusiasts alike since the early 70's. Their time proven rotor/vane design is known to get the job done in an affordable package.
Features
- Tumble polished billet look
- Lower housing casting designed for enhanced fuel flow
- Improved design for street/strip applications
- Distinctive “Black” logo
- Compatible with alcohol or methanol fuels
- Not designed for use on aircraft of any type.

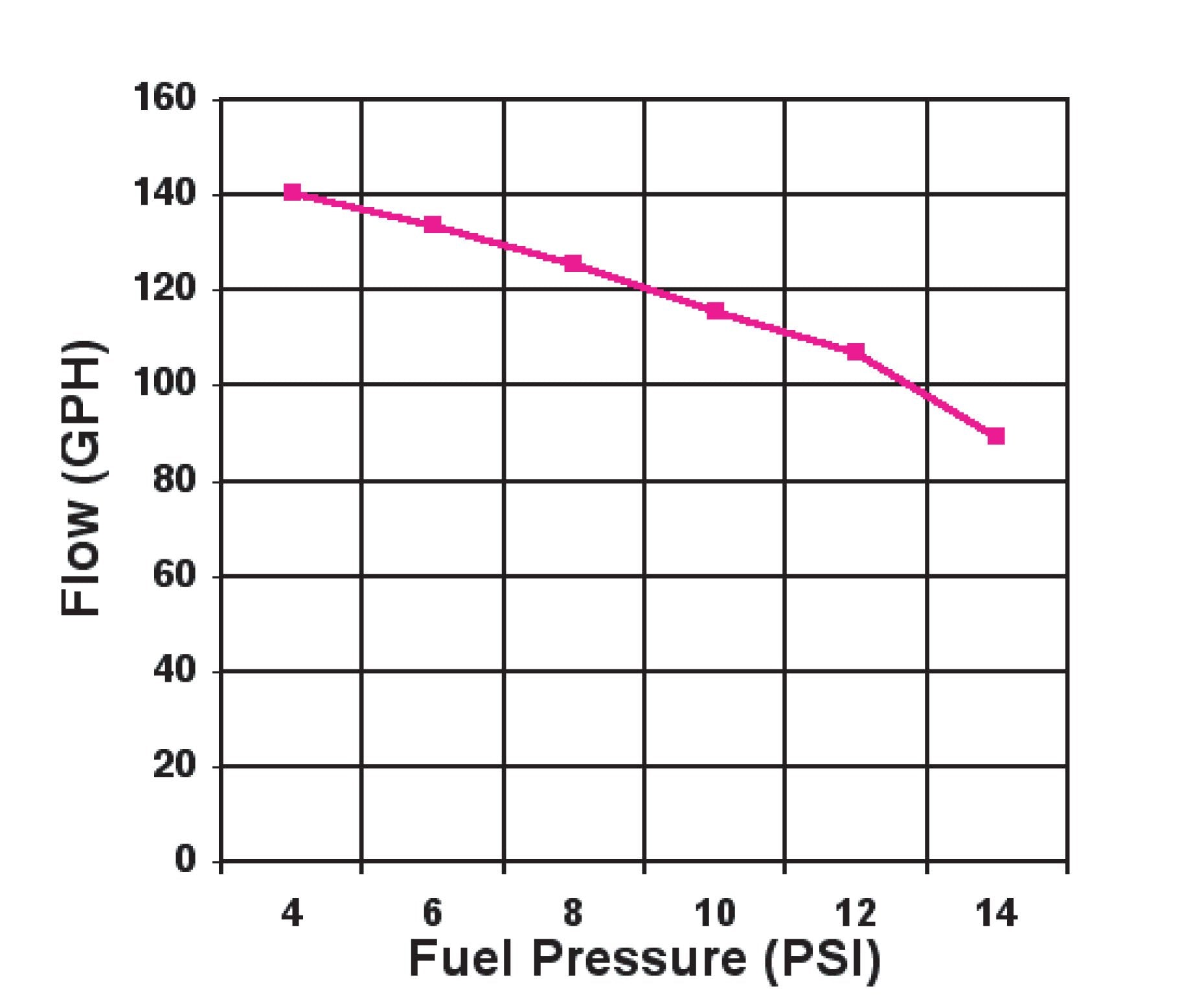

- Flows 140 GPH (free flow)
- Flows 120 GPH at 9 psi
- Maximum pressure is 14 psi
- 3/8” NPT inlet and outlet ports
- Fuel pressure regulator is required (recommend Holley P/N 12-704 for gasoline & P/N 12-707 for alcohol)
- Motor draws only 4 amps current
- Relay kit P/N 12-753 & 7 1/2 amp fuse recommended
- Provides constant fuel flow with no pulsation
- Has externally accessible pressure relief valve (max 14 psi)
- Rotor/vane pump design is more tolerant of contaminated fuels
- Weighs only 3 lbs
- Includes mounting bracket
- Repair kits are readily available
- Can be serviced from the pump end
- Use of safety shut-off switch, P/N 12-810, strongly recommended
- Not designed or recommended for use with fuel injection systems
Specification
| Bracket Color | Silver |
|---|---|
| Brand | Holley |
| Category | Air and Fuel Delivery |
| Emission Code | 5 |
| Free Flow GPH | 140 |
| Free Flow LPH | 530 |
| Fuel Delivery Type | Carburetor |
| Fuel Sending Unit Included | No |
| Fuel System | Carbureted |
| Fuel Type | Gasoline |
| Methanol | |
| Gasket Or Seal Included | No |
| Grade Type | Performance |
| Inlet Fitting Thread Size | 3/8 IN |
| Inlet Size | 3/8 inch NPT |
| Inlet Type | NPT |
| Internal Or External | External |
| Material | Aluminum |
| Maximum Amperage Draw | 4 68 |
| Maximum Flow Rating | 140 GPH |
| Maximum Pressure | 14 PS |
| Motor Finish | Silver |
| Negative Ground | Yes |
| Outlet Fitting Thread Size | 3/8 IN |
| Outlet Quantity | 1 |
| Outlet Size | 3/8 inch NPT |
| Outlet Type | NPT |
| Part Type | Electric Fuel Pump |
| Product Type | Fuel Pump |
| Pump Body Color | Silver |
| Regulator Included | No |
| Sub Category | Fuel Pumps and Related Components |
| Universal Or Specific Fit | Universal |
| Voltage | 12 2H |
| Warranty | Manufacturer's Limited 90 Day Warranty |
| Wire Quantity | 2 |
| UPC | 090127484302 |
| Part Number | 12-815-1 |
