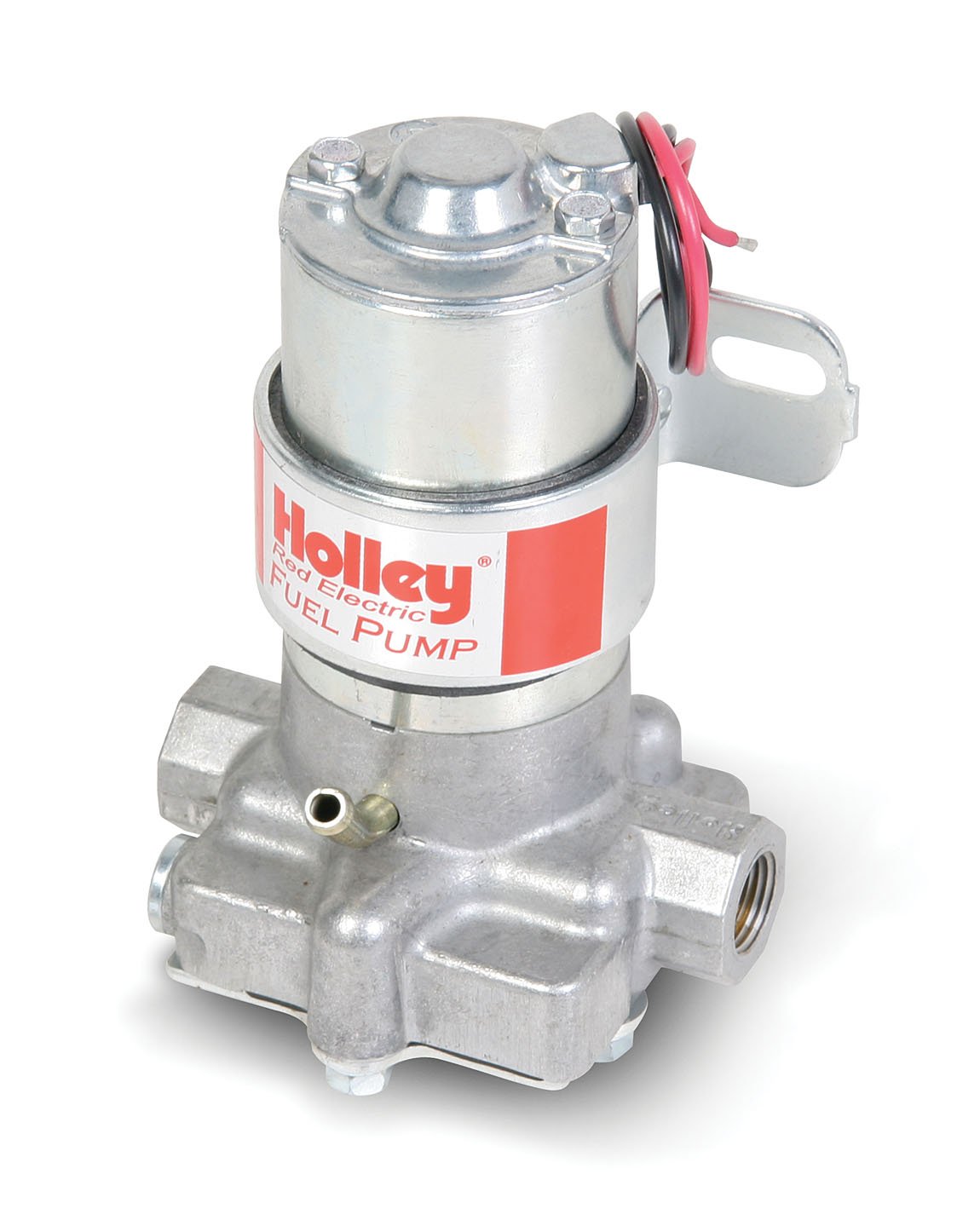

Holley 97 GPH RED® Electric Fuel Pump 712-801-1
Holley 97 GPH RED® Electric Fuel Pump 712-801-1
Contact for pricing information
Couldn't load pickup availability
Holley 97 GPH RED® Electric Fuel Pump 712-801-1
Description
The world famous Red®, Blue® and Black® fuel pumps are the most recognized performance pumps of all times. They have been powering racing legends and street enthusiasts alike since the early 70's. Their time proven rotor/vane design is known to get the job done in an affordable package. Designed with a fume tube for marine use and meets U.S. Coast Guard regulations.
Features
- Tumble polished billet look
- Lower housing casting designed for enhanced fuel flow and quiet operation
- Maximum pressure is 7 psi
- Motor draws 2 amps current
- 7 1/2 amp fuse recommended
- Constant fuel flow with no pulsation
- Improved design for street/strip applications
- Not designed to be used on aircraft of any type.
- Distinctive “Red” logo
- Flows 97 GPH (free flow)
- Flows 71 GPH at 4 psi
- regulator is not required
- Has externally accessible pressure relief valve (max 7 psi)
- Rotor/vane pump design is more tolerant of contaminated fuels
- Weighs only 2.88 lbs
- Includes mounting bracket
- Repair kits are readily available
- Can be serviced from the pump end
- Not compatible with alcohol or methanol fuels
- Use of safety shut-off switch, P/N 12-810, strongly recommended
- Not designed or recommended for use with fuel injection systems
- Meets U.S. Coast Guard regulations
- Includes Fuel/vapor tube
Specificatios
| Application | Marine |
|---|---|
| Bracket Color | Silver |
| Brand | Holley |
| Category | Air and Fuel Delivery |
| Emission Code | 5 |
| Free Flow GPH | 97 |
| Free Flow LPH | 367 |
| Fuel Delivery Type | Carburetor |
| Fuel Pump Type | Electric |
| Fuel Sending Unit Included | No |
| Fuel System | Carbureted |
| Fuel Type | Gasoline |
| Gasket Or Seal Included | No |
| Grade Type | Performance |
| Inlet Fitting Thread Size | 3/8 IN |
| Inlet Size | 3/8 inch NPT |
| Inlet Type | NPT |
| Internal Or External | External |
| Material | Aluminum |
| Maximum Amperage Draw | 2 68 |
| Maximum Flow Rating | 97 GPH |
| Maximum Pressure | 7 PS |
| Motor Finish | Silver |
| Negative Ground | Yes |
| Outlet Fitting Thread Size | 3/8 IN |
| Outlet Quantity | 1 |
| Outlet Size | 3/8 inch NPT |
| Outlet Type | NPT |
| Part Type | Electric Fuel Pump |
| Product Type | Fuel Pump |
| Pump Body Color | Silver |
| Regulator Included | No |
| Sub Category | Fuel Pumps and Related Components |
| Universal Or Specific Fit | Universal |
| Voltage | 12 2H |
| Warranty | Manufacturer's Limited 90 Day Warranty |
| Wire Quantity | 2 |
| UPC | 090127484319 |
| Part Number | 712-801-1 |
